Pressure-Sensitive Labels
Paper, film, PET, BOPP, and clear-on-clear label stock with zero burn-edges or matrix tears.
Engineered in Rolling Meadows, Illinois, USA
Maximum Scalability for Modern Industrial Converters
The Spartanics CS2100 represents the pinnacle of modular web converting technology. Designed specifically for global label manufacturers, flexible packaging converters, and industrial component suppliers, the CS2100 integrates state-of-the-art software intelligence with solid-state laser cutting optics to deliver tool-free production, zero lead-time job switching, and unmatched repeat accuracy.
| Performance Metric | CS2100 System Standard | Operational Advantage for Buyers |
|---|---|---|
| System Architecture | Fully Modular, Servo-Driven Chassis | Add printing, slitting, or varnish stations as production scales |
| Laser Spot Precision | Down to 0.004 inches (0.1 mm) | Flawless kiss-cutting, micro-perforations, and complex contours |
| Registration Technology | Camera-Based Real-Time Vision Tracking | Compensates dynamically for web distortion, stretch, and repeat drift |
| Workflow Integration | Fast-line AI Plug-in & Software Suite | Instant die-line file creation directly from artwork; zero die tooling spend |
| Output Options | Roll-to-Roll, Roll-to-Sheet, Roll-to-Part | Single line handles stickers, technical gaskets, and packaging inserts |

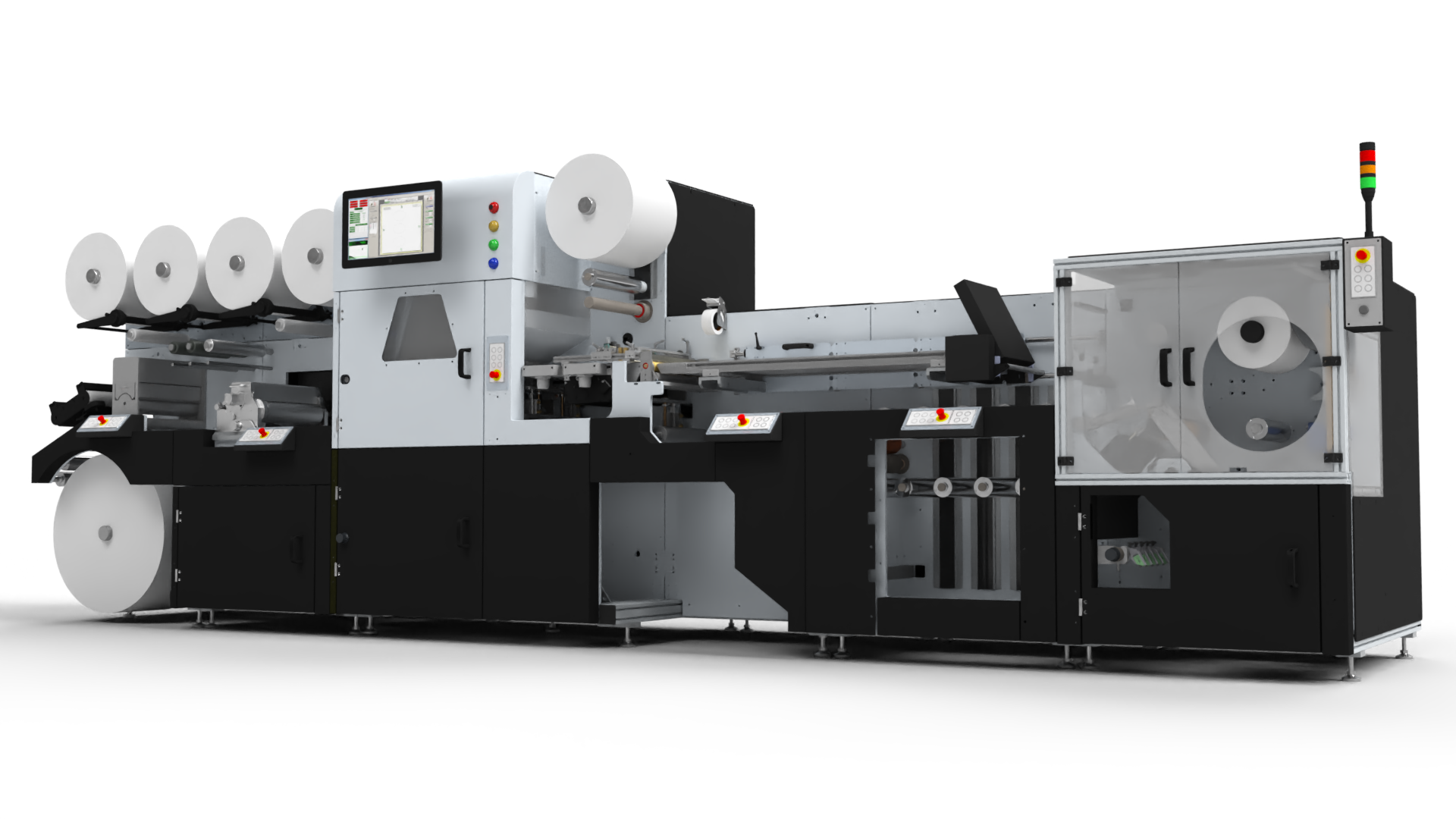

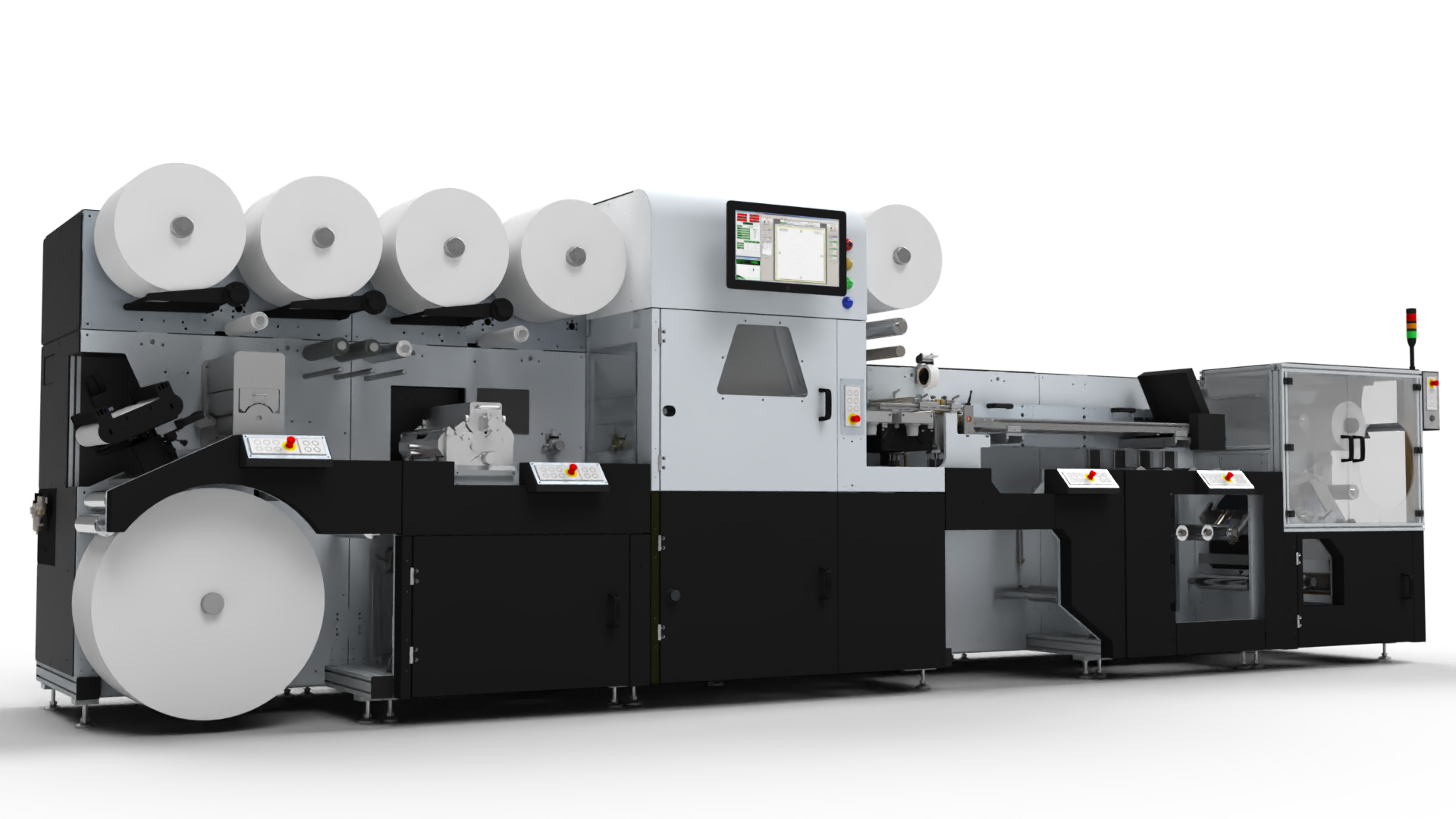

Versatile System Layouts
Visual Gallery of CS2100 Modules

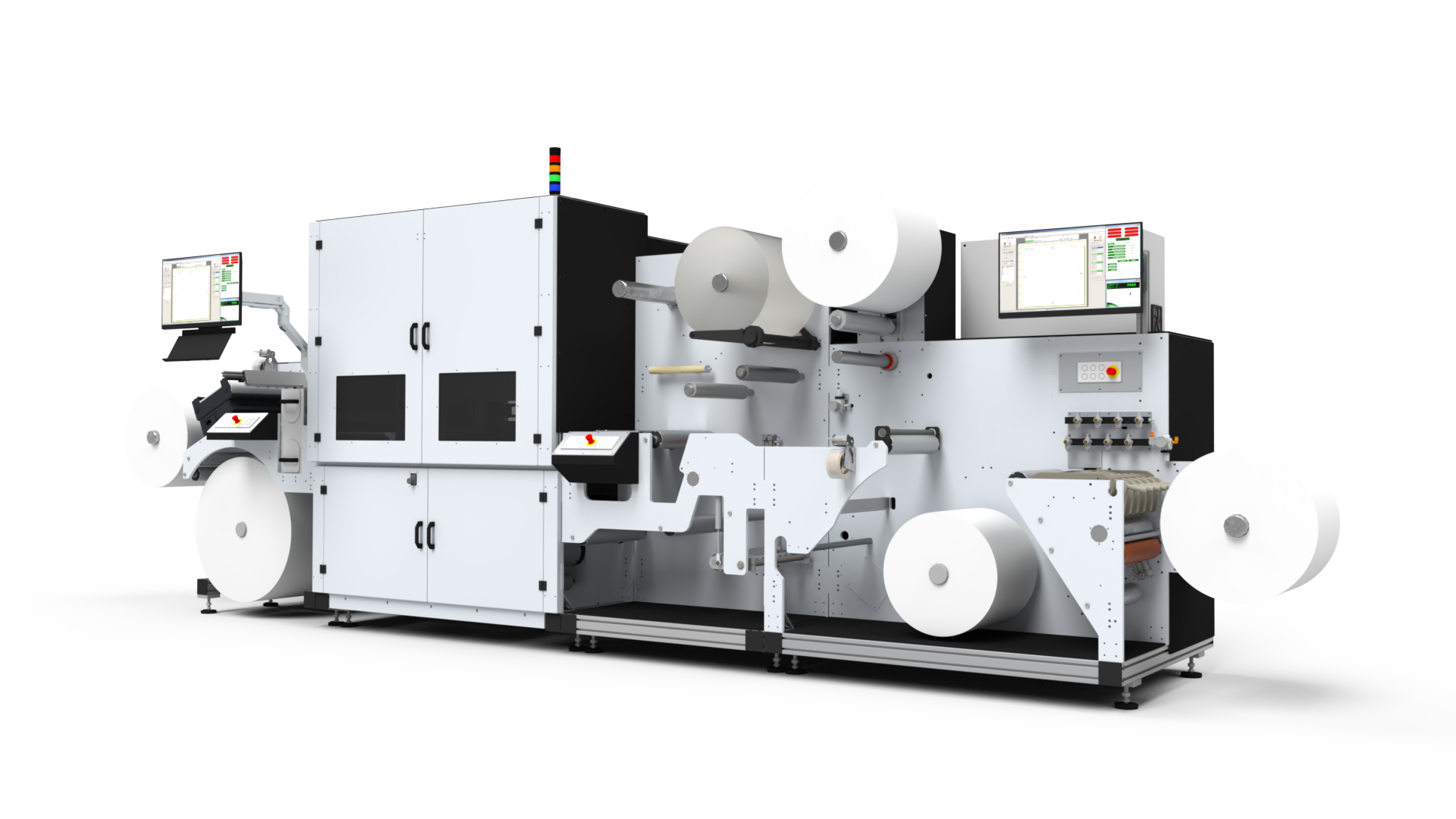

From high-speed single pass inkjet printing to dual-head laser die cutting and automated part extraction, every CS2100 system can be configured to exact factory specifications.
_iso right.png)
Customizable Engineering
Modular Station Options & Add-Ons
Protect your capital investment by scaling equipment capabilities alongside order growth. Choose from over 18 modular stations to create your optimal inline finishing platform.

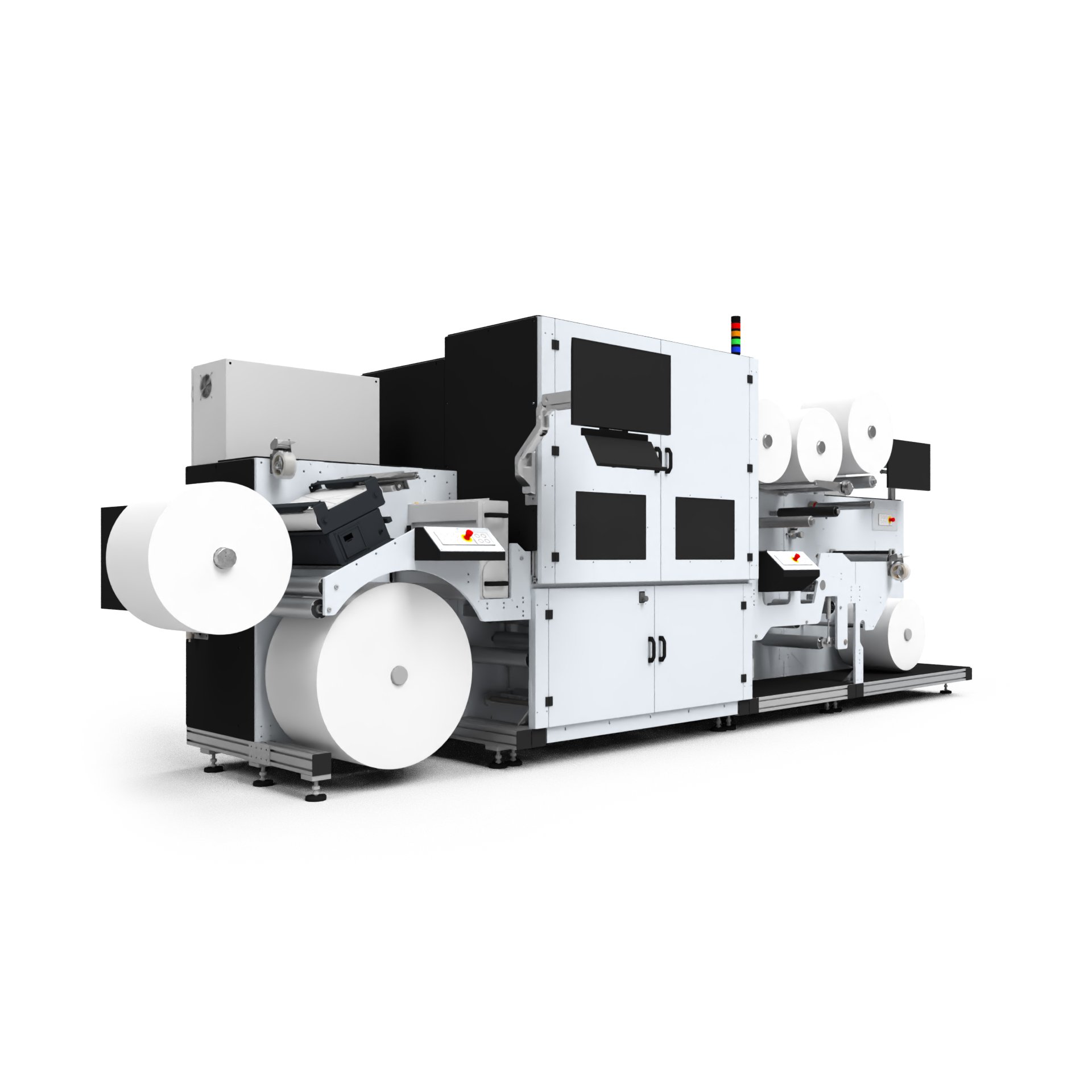

Unwind & Web Cleaning
Heavy-duty unwind spindles paired with automated corona treaters and contact/non-contact web cleaners ensure optimal surface energy and zero dust contamination before processing.
Lamination Stations
Support both self-wound pressure-sensitive laminates and carrier-backed film lamination to enhance product durability, gloss, and weather resistance.
UV Varnish Coating
Integrated spot or flood UV varnish application modules with full curing control, delivering tactile finishes and defensive surface coatings in a single web pass.

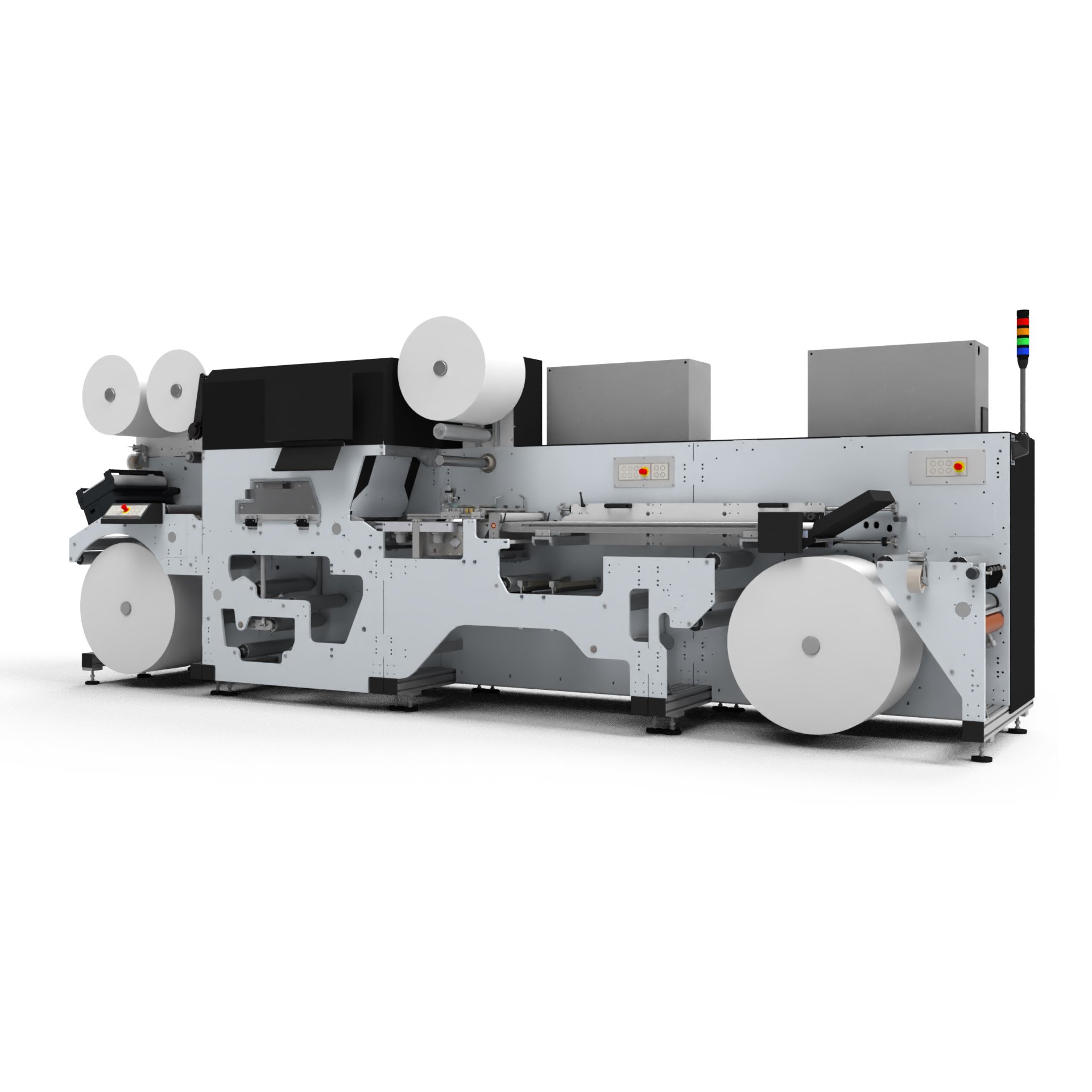

Single or Dual Laser Modules
Configure single-head or multi-head laser optics to double throughput speeds or execute complex multi-layer cut-depth sequences simultaneously.
Semi-Rotary Mechanical Cutting
Combine laser speed with semi-rotary magnetic cylinders for solid-tool creasing, heavy embossing, or high-volume single-shape runs.
Slitting & Backscoring
Manual or fully automated backscore slitting modules enable clean liner slitting, edge trimming, and multiple strip rewinding without burrs.
Rewind & Matrix Removal
Smooth waste matrix stripping with targeted tension management, paired with single, dual, or continuous turret rewind options for minimal downtime.
Rotary Sheeter
Convert web stock directly into precisely registered cut sheets, delivered via stacking conveyors for batch packaging and shipping.

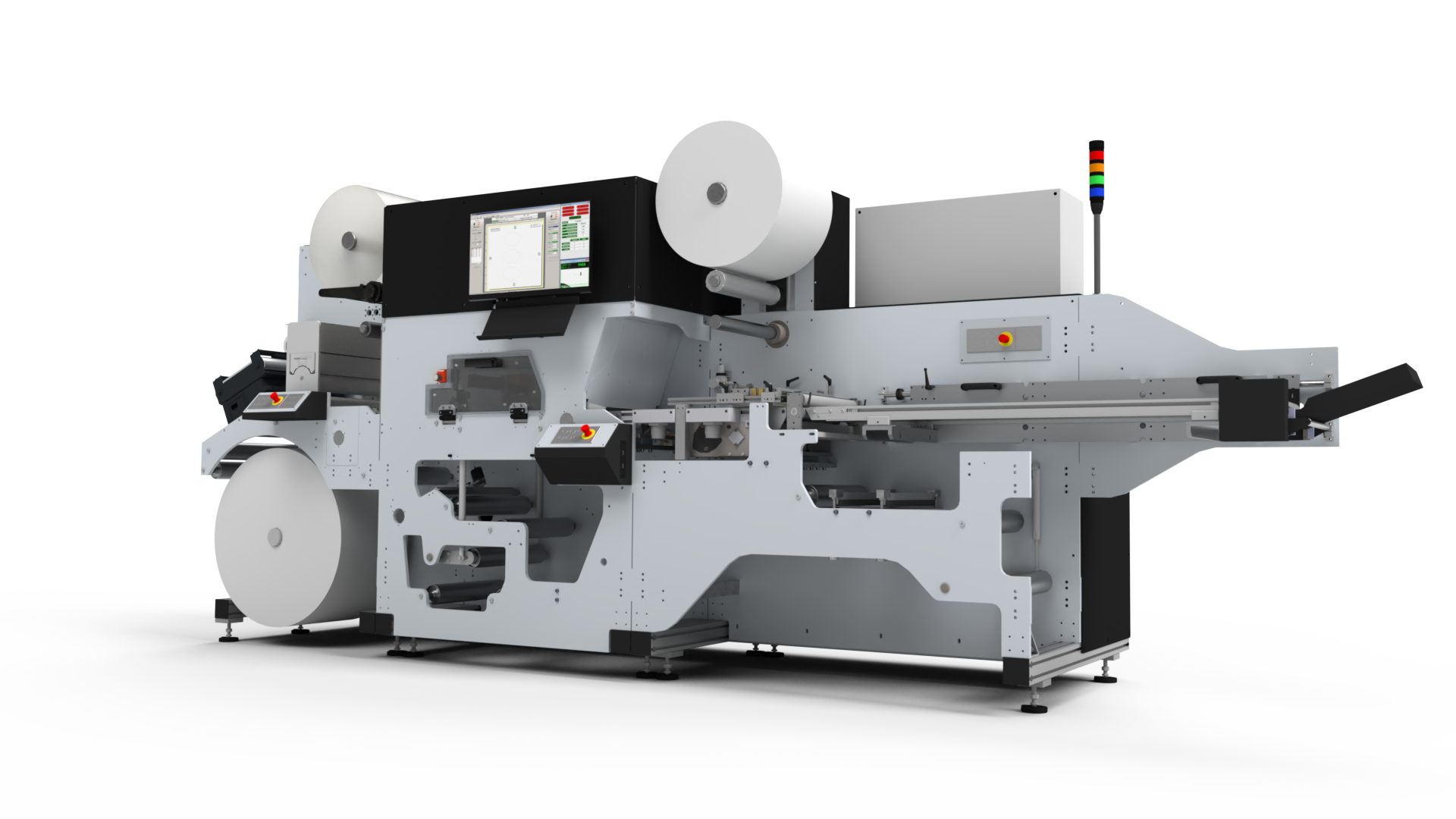

Automated Part Extraction
Specialized knock-out and vacuum conveyor belts capture fully cut parts out of the web, sorting pieces into batch bins automatically.
Global Industrial Reach
Supported Markets & Technical Substrates
Every material formulation behaves differently under a laser beam. Spartanics has pre-validated thousands of production substrates for overseas contract manufacturers and prime label converters.
Industrial Decals & Stickers
Heavy vinyl, outdoor reflective films, and automotive bumper stickers with fast contour changes.
Medical Devices & Diagnostics
Cleanroom-compatible kiss-cutting of microfluidic tapes, skin adhesives, and diagnostic test strips.
Flexible Packaging
Laser scoring for easy-open pouches, micro-perforations for gas exchange, and window cutouts.
Abrasive Materials
Toolless shape cutting of sanding discs, abrasive papers, and technical grinding substrates.
Gaskets & Seals
Precision kiss-cutting and die-cutting of compressible foam, rubber, silicone, and graphite layers.
Automotive Components
High-durability engine bay labels, membrane switch overlays, and interior acoustic damping felts.
Food & Beverage Packaging
High-speed short-run roll packaging, tamper-evident labels, and promotional neck tags.
Technical Support & Validation
Validate Your Material Before Investment
Send your substrate samples and CAD drawings to our Rolling Meadows testing facility. Our senior application engineers will process your job, calculate exact cycle times, and provide cut quality validation reports.
