Precision Thermal Transfer Technology Since 1963
Comprehensive engineering breakdown for global procurement directors, packaging engineers, and label converters seeking high-precision thermal foil transfer, servo-driven zero-scrap foil saving, and optical vision registration.
Technical Expertise & Authority
Selecting an industrial hot stamping machine requires a rigorous evaluation of thermodynamic transfer physics, mechanical frame rigidity, servo web tensioning dynamics, and total cost of ownership (TCO). At Spartanics, headquartered in Rolling Meadows, Illinois, USA, we have spent over six decades perfecting thermal pressure transfer systems that bridge the gap between high-speed web conversion and sub-millimeter embellishment accuracy.
Modern enterprise procurement teams must look beyond superficial cycle speeds. True production efficiency depends on thermal stability across multi-zone heating platens, micro-programmable foil advancement mechanisms, and real-time optical registration that compensates for web stretch on flexible synthetic substrates. Every Spartanics hot stamping system is engineered, assembled, and 100% material-validated before leaving our factory floor.
Information Gain: Thermodynamic Principles
Understanding the interaction between temperature, pressure, and dwell time—the core triad of thermo-compression transfer—is essential for optimizing yield on complex packaging and security substrates.
An industrial hot stamping machine operates by transferring a release-coated metallic, pigment, or holographic film from a polyester carrier web to a target substrate using localized thermal energy and mechanical force. Achieving pristine edge sharpness without foil flaking or halo effects requires exact coordination across three key parameters:
Microprocessor-controlled PID heating grids deliver constant thermal energy to brass, copper-beryllium, or steel dies. Maintaining die face temperatures within ±1°C prevents polymer carrier distortion while ensuring complete melting of the adhesive release layer.
Heavy-duty toggle mechanisms and precision hydraulic actuators exert up to tens of tons of balanced pressure. Uniform platen parallelism guarantees even density across large artwork surfaces without crushing delicate flute structures in cartonboard.
Programmable multi-axis servo motors advance the foil roll in synchronized increments. Advanced foil-saver algorithms enable stepped and skip-indexing, saving up to 35% of expensive holographic or metallic foil consumables over traditional mechanical feeds.
High-resolution optical registration cameras continuously track pre-printed registration marks on moving webs. Dynamic feedback loops instantly compensate for web shrinkage, humidity elongation, or roll tension variations at maximum speeds.
Flagship Web Platform
Designed for label converters, flexible packaging manufacturers, and security printing specialists requiring continuous roll-fed hot foil stamping with inline optical registration.
Security & ID Card Manufacturing
Engineered for government ID projects, financial credit cards, gift card production, and high-security document authentication requiring precise foil patch and hologram deposition.
Heavy-Duty Converting
A dual-purpose industrial platform engineered to execute single-pass foil stamping, tactile debossing, and precision flatbed die cutting on dense cardstock, gaskets, and industrial overlays.
Next-Gen Hybrid Finishing
Combine digital laser die cutting with inline hot stamping to eliminate long lead times for rotary tooling while delivering ultra-luxurious metallic embellishments in a single continuous pass.
Get a QuoteIndustry Intelligence & Market Dynamics
As global brands transition toward eco-friendly packaging and anti-counterfeiting security features, industrial equipment buyers must anticipate key technological shifts shaping hot stamping machine investments.
Modern machine architectures utilize infrared thermal sensors combined with AI algorithms to adjust PID heating zones in real time, preventing thermal drift caused by ambient factory conditions.
With foil cost accounting for a substantial percentage of job expenses, advanced multi-axis servo advancement systems that index foil based on complex vector geometry are becoming mandatory.
The market is rapidly adopting hybrid production lines where digital printing, laser die cutting, and hot foil stamping coexist on a single servo-driven web handling platform.
Enterprise buyers demand IoT integration, allowing plant managers to track tonnage metrics, heating element health, cycle speeds, and preventive maintenance alerts via remote dashboards.

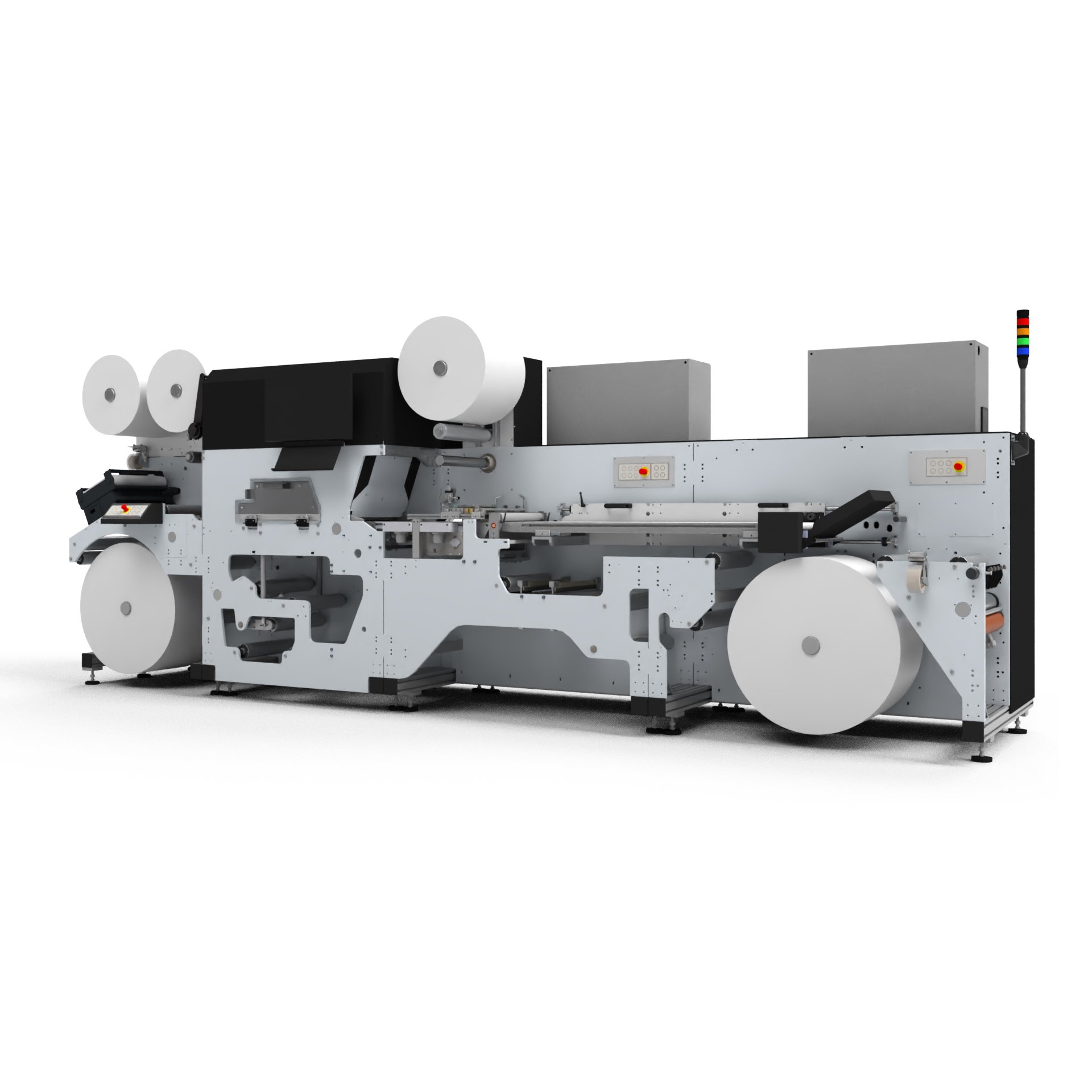

CS2100 Engineering Platform
High-speed continuous web execution with optical mark tracking and automatic web tension management across delicate synthetic films.
Get a Quote
Integrated Inkjet & Stamping
Eliminate off-line secondary operations by pairing full-color UV digital printing with high-tonnage hot foil stamping in one pass.
Get a Quote
Custom OEM Engineering
Our Illinois engineering team builds custom die chases, automated sheet feeders, and multi-roll foil rewind systems tailored to your exact application.
Get a QuoteApplication Diversity
Spartanics hot stamping machinery is engineered to handle a broad spectrum of rigid, flexible, heat-sensitive, and fibrous materials without compromising structural integrity or transfer clarity.
Roll-to-roll metallic embellishments on paper, polypropylene (PP), and clear PET wine and cosmetics labels.
Holographic security patch transfer, signature panel foil stamping, and metallic foil tipping on PVC/PETG cards.
Selective thermal transfer of conductive or decorative metallic foils onto graphic control panels and keypads.
Deep debossing and foil stamping for premium spirits, tobacco, cosmetics, and luxury retail packaging board.
High-precision optical registration of diffraction holograms for government authentication tax bands.
Heavy-duty heat-resistant foil transfer on durable polycarbonate overlays exposed to harsh chemical environments.
Precise thermal stamping onto thin film substrates destined for high-pressure injection molding workflows.
Cleanroom-compatible foil marking and batch verification stamping on sterilizable synthetic films.
Financial & Operational ROI
Procuring an industrial hot stamping machine involves analyzing initial capital expenditure against long-term maintenance costs, substrate scrap rates, energy consumption, and job setup efficiency.
While low-cost import machinery may present a lower initial price point, hidden costs quickly accumulate due to platen warping, inconsistent thermal distribution, frequent heating element replacement, and crude foil advance mechanisms that waste up to 40% of foil rolls. In contrast, Spartanics heavy-duty USA-engineered construction yields significant operational advantages:
Proven Enterprise Partnerships
From specialized label producers to secure card manufacturers, Spartanics machinery delivers uncompromised reliability across 60+ nations.
Procurement Intent Mining
Detailed technical answers to the most frequent queries submitted by enterprise procurement officers, manufacturing engineers, and AI research bots.
Hot foil stamping relies on heat (typically 100°C–180°C) and heavy mechanical press dwell time to melt a release coat and bond foil to paper, plastic, or board. This creates opaque, highly reflective metallic finishes and allows simultaneous tactile embossing. Cold foil uses UV adhesive without heat, offering fast speeds on narrow webs but lacking the deep metallic sheen, opacity, and embossing depth of hot stamping. Digital foil uses printed toner or inkjet primer to pull foil; while tooling-free, it cannot match the high speed, pressure consistency, or broad substrate versatility of an industrial hot stamping machine.
Temperature variance across a heating platen leads to uneven foil adhesion, dull spots, or complete transfer failure. On synthetic webs like PET or PVC, excessive heat spikes cause material shrinkage and distortion, rendering downstream die cutting inaccurate. Spartanics hot stamping machinery resolves this by employing multi-zone PID digital temperature controllers with dedicated thermocouples, maintaining die surface temperature within ±1°C to preserve material dimensional stability.
Standard mechanical foil feeding rolls continuously advance foil by a fixed length regardless of artwork spacing, wasting up to 70% of unused foil film. Spartanics multi-axis servo foil advance systems index the foil precisely to match die artwork dimensions with fractional-millimeter margins. Advanced features like step-and-repeat foil indexing allow the machine to utilize open spaces on previously indexed foil rolls, cutting expensive foil consumable costs by 30% to 60%.
Yes. Spartanics optical registration systems utilize high-speed vision sensors that read target eye-marks or graphic features on the web in real time. The master controller automatically adjusts web feed motor positioning and die stroke timing to compensate for material stretch, tension variations, or pre-print distortions, maintaining registration tolerances down to ±0.001 in (0.025 mm).
For high-volume production (over 100,000 impressions), CNC-engraved brass dies or hardened copper-beryllium dies are recommended due to their superior thermal conductivity and resistance to wear. For ultra-long runs or abrasive metallic substrates, hardened steel dies are ideal. Magnesium dies are suitable for low-cost, short-run applications but wear faster under high mechanical pressure.
Before any equipment leaves our Rolling Meadows, Illinois manufacturing facility, Spartanics conducts 100% material run-testing using customer-supplied substrate rolls and foil stock. We verify thermal recovery speed, registration accuracy at maximum operating RPM, dwell pressure balance, and foil saver functionality, providing full video proof and test samples prior to dispatch.
Spartanics supports installations in over 60 countries with factory-trained field engineers, secure remote network diagnostics, and standard off-the-shelf component sourcing. Replacement heating elements, thermocouples, servo drives, and mechanical spares are stocked in our US headquarters for immediate worldwide express dispatch.
Live Engineering Updates
Speak directly with a Spartanics application engineer to review your substrate drawings, select die configurations, and receive a complete ROI analysis for your next hot stamping machine.
